Oljekvalitetsanalys

OQD Professional

OQDp-N-6-1-P

Product Overview

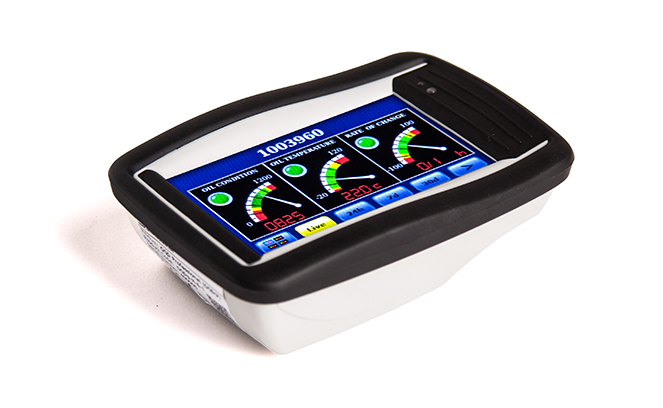

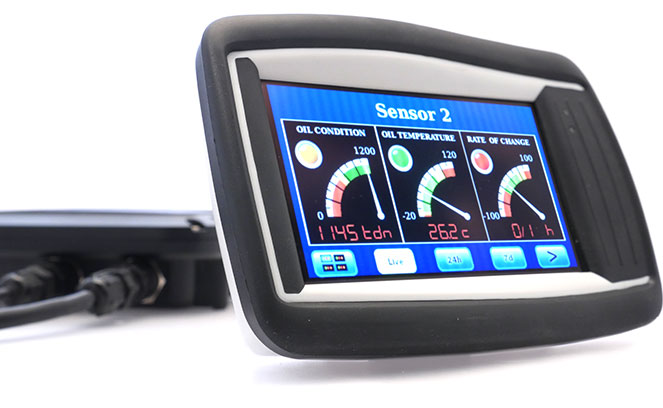

The OQD Professional (OQDp) has the capability of displaying real time information about your oil condition from multiple sensors making it the ideal display when using multiple sensors on one piece of kit. The touch screen LCD display ensures you always have a 360 degree view of the condition of your oil ensuring the continued performance of your equipment.

Compatible with up to four Oil Quality Sensors (OQSx) the data-logging facility will allow you to trend the performance of your oil whilst the real time alerts will ensure you can prevent unnecessary failures and down time.

Ordering Code: OQDp-N-6-1-P

N

Flexible Installation

Can be installed stand alone or in dash.
N

Ease of Use Viewing

Four sensors instantaneously with the ability to drill down to one specific sensor for a more in-depth view.
N

Fully Certified

The OQD Professional (OQDp) is fully certified to international standards to work in the majority of commercial and industrial applications.
N

Robust and Rugged

The rugged IP6K7 rated enclosure with rubber frame and high quality industrial connectors make this unit very reliable and robust.
N

Independently Tested

Has undertaken rigorous independent testing to verify the outstanding performance in a wide variety of applications.

Technical data

Produktnamn Oljekvalitetsanalys OQD Professional (OQDp)
Product code OQDp-N-6-1
Material Plastic housing with rubber frame
Dimensions 142mm x 98mm x 43.2mm (L x W x H)
Weight 275g
Power Supply 9-30 V DC
Power Consumption Average at 13.5V
DC: On = 430mA,
Low-Power = 160mA, Sleep = 90mA,
Off = 0
Operating Temperature -30ºC to +65ºC
Display TFT Colour Graphic LCD with LED backlight
Dimensions: 4.3”, 95mm x 53mm
Resolution: 480
