Oljekvalitetsmätning
OQD Express
OQDe-A-2-1-P
Product Overview

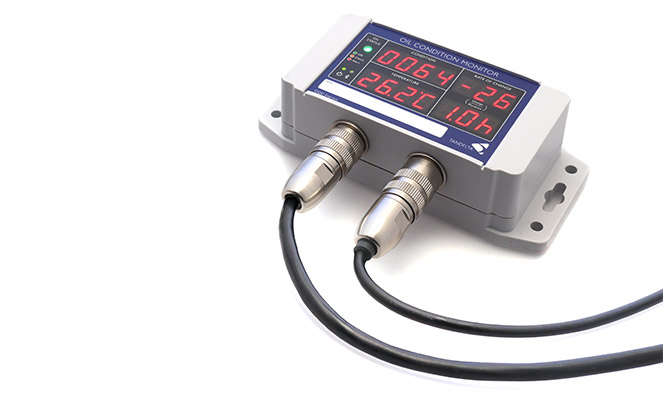

The OQD Express (OQDe) is the perfect partner for the Oil Quality Sensor (OQSx). Engineered to deliver outstanding performance, the robust IP67 rated enclosure delivers a straight forward and effective way to display the real time condition of your oil.
Constant, proactive monitoring ensures that your key resources are optimised at all times giving instant alerts from the easy to read display unit help ensure the reliability of your critical equipment. Data is also logged saving over 800,000 readings allowing you to easily record and trend your oil condition.
Bluetooth connectivity giving the ability to download and send data stored.
Ordering Code: OQDe-A-2-1-P
Flexible Installation
Can be used stand alone or simply connected to a wide variety of control and display systems.
Ease of Use
With the intuitive traffic light display the real time monitoring of your oil condition has never been easier.
Fully Certified
The OQD Express (OQDe) is fully certified to international standards to work in the majority of commercial and industrial applications.
Robust and Rugged

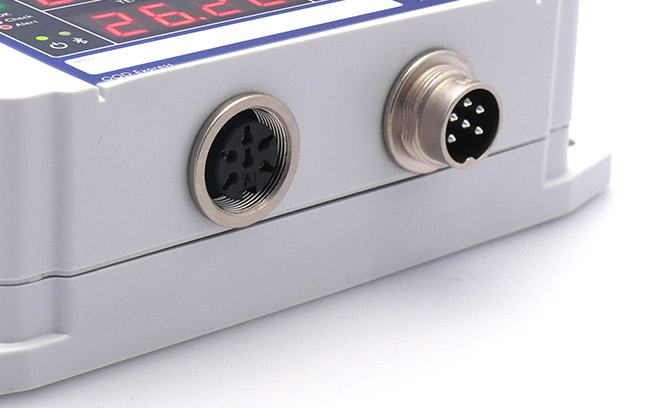

The rugged IP67 rated enclosure with membrane keypad and high quality industrial connectors make this unit very reliable.
Independently Tested
Has undertaken rigorous independent testing to verify the outstanding performance in a wide variety of applications.
Technical data
| Product name | Oljekvalitetsmätning OQD Express (OQDe) |
| Product code | OQDe-A-2-1 |
| Material | Heat Repellent Polycarbonate |
| Dimensions | : 120mm x 66mm x 42mm (L x W x H) |
| Weight | 300g |
| Power Supply | 9-30 V DC |
| Power Consumption | Average 0.4w continuous 200mA |
| Operating Temperature | -30ºC to +65ºC |
| Storage Capacity | >800,000 records |
| Logging Interval | 1 minute to 45 days |
| Battery Backup | ~10 years |
| Data Download | Via RS485 or Bluetooth |
| Display | Oil Quality (Tan Delta Number) Oil Temperature Rate of Change (Condition/Time) Status Indicator |
