Oljekvalitetsprovning

OQD Professional Hub

OQA-HUB-1-P

Product Overview

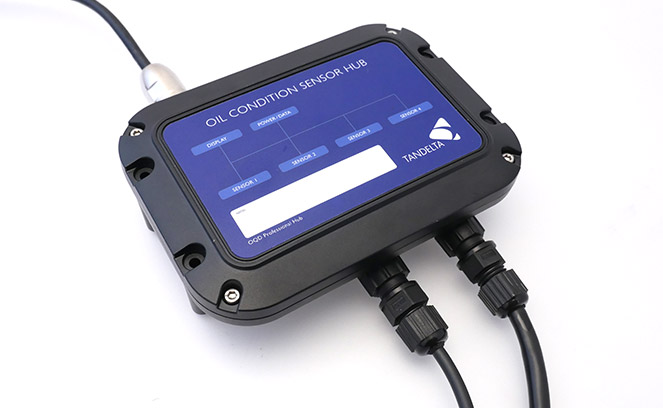

The OQD Professional Hub allows up to four sensors to be simultaneously connected to the OQD Professional (OQDp). Robust and simple to install.

Ordering Code: OQA-HUB-1-P

N

Display Multiple Sensors

Connect four sensors to a single OQD Professional (OQDp) and display and log all data in real time.
N

Fully Certified

The OQD Professional Hub is fully certified to international standards to work in the majority of commercial and industrial applications.
N

Robust and Rugged

The rugged IP67 rated enclosure and high quality industrial connectors make this unit very reliable.
N

Ease Of Use

Simply configure your sensors with ID numbers 1-4 and plug into the corresponding slots on the OQD Professional Hub.

Technical data

Produktnamn Oljekvalitetsprovning OQD Professional Hub
Product code OQA-HUB-1
Material Fire Resistant Resin
Dimensions 140mm x 100mm x 45mm (L x W x H)
Weight 225g
Power Supply 9-30 V DC
Operating Temperature -30ºC to +65ºC
Water & Dust IP67 when connected
Shock & Vibration BS EN 60068-2-30
(Test Db – Cyclic Humidity)
BS EN 60068-2-6
(Test Fc – Sine Vibration)
BS EN 60068-2-27
(Test Ea – Mechanical Shock)
EMC EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments)
EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments)
